Blackhawk Omni High Gain 698-2700 6dBi Antenna

Availability: In Stock

Buy Online Now at Powertec.com.au

Operating on all 3G and 4G frequencies in Australia and abroad, this high grade antenna can be used in a range of residential, commercial, and industrial mobile broadband applications on any mobile network. This is the ideal omni-directional external antenna for Cel-Fi repeater systems.
ELECTRICAL SPECIFICATIONS

Frequency Range698-960 MHz / 1710-2700 MHz
Input Impedance50 Ω
Peak Gain6 / 6 dBi
VSWR≤2.5:1 / ≤2.5:1
PolarisationVertical linear
Horizontal Beamwidth360° (omnidirectional)
Vertical Beamwidth60°
Maximum Input Power100 W
Category:

The Blackhawk Wideband Omni Antenna provides an ideal solution for 3G / 4G voice and data applications. With the rollout of new 3G and 4G frequencies such as 700 MHz 4GX and 2600 MHz 4G, traditional omni-directional antennas just haven’t been able to keep up. Blackhawk wideband omni-directional antennas provide high gain across the full cellular band 700 to 2700 MHz regardless of mounting direction, allowing quick and easy installation with no technical know-how required.

The true wideband performance has been achieved through a clever engineering design utilising multi-sized collinear radiators and microwave-grade combiners, demonstrating consistently high gain with exceptional azimuthal stability.

FEATURES
6 dBi gain across lower bands 698-960 MHz
6 dBi gain across upper bands 1710-2700 MHz
Ruggedised construction for Australian conditions
UV-stable PVC construction
Stainless steel L-bracket included

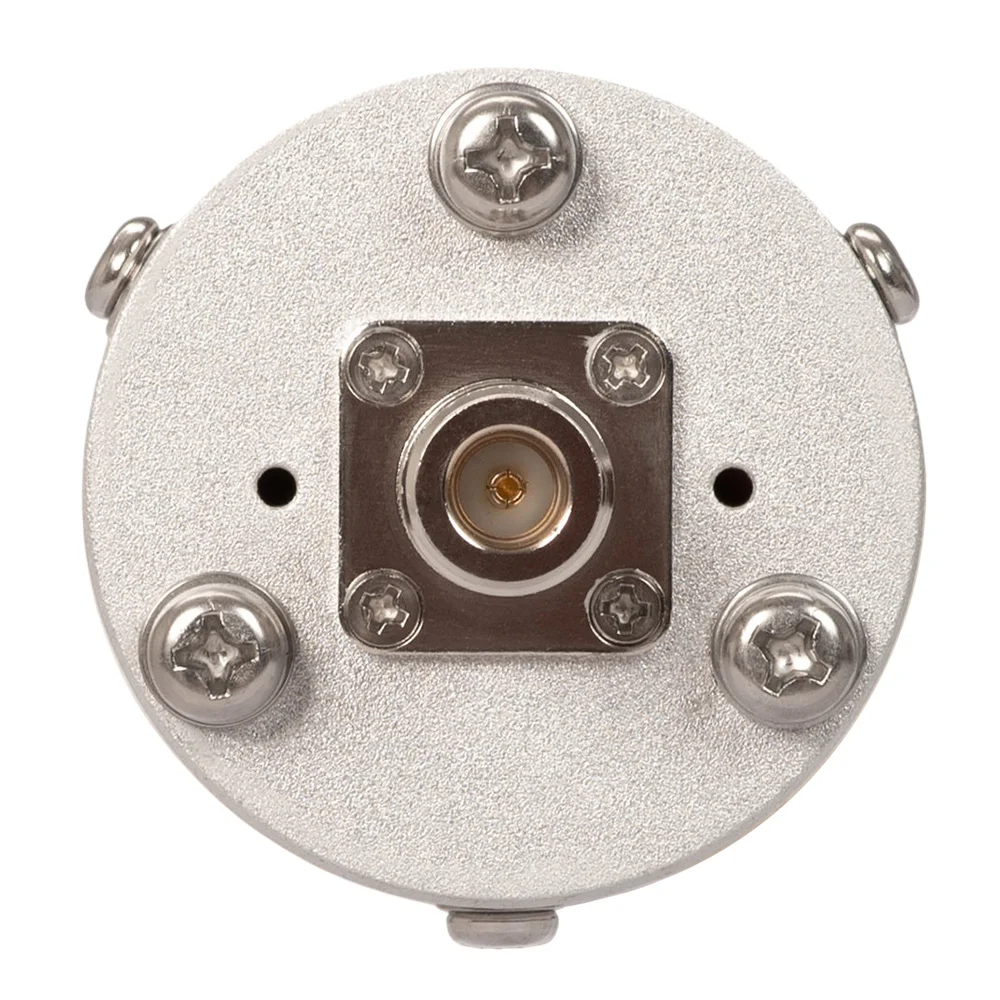

Integrated N Female connector
Optional 6m or 10m LMR240 cable

Input ConnectorN Female
Cable (optional)6m PT240 LSHF SMA Male

10m PT240 LSHF SMA Male

Lightning ProtectionDC Ground
Radiator MaterialCollinear copper elements
Radome MaterialUV stable PVC
MountingStainless Steel, pole mount Ø30-50 mm
DimensionsØ63 × 680 mm
Weight1.9 kg
Packing Dimensions700 × 100 × 100 mm
Rated Wind Velocity210 km/h
Operating Temperature-40 to +65°C
