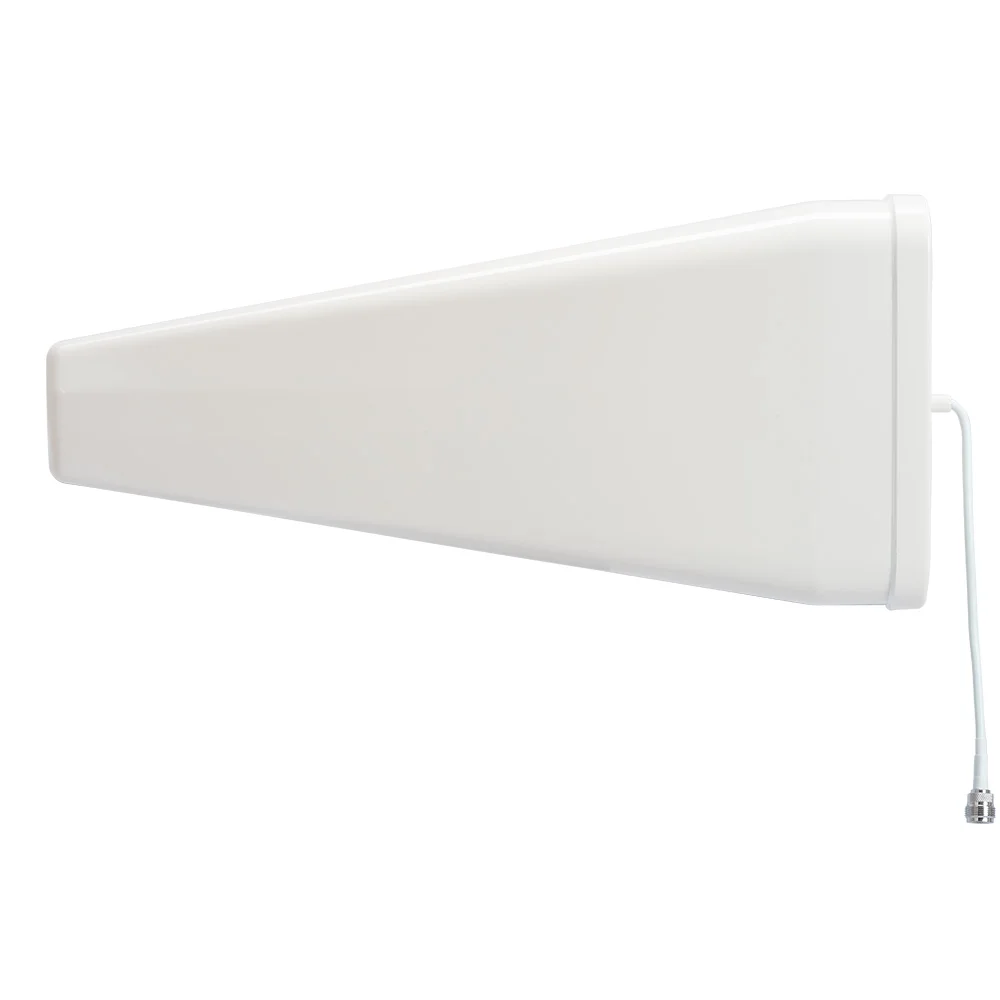

Blackhawk Yagi Wideband LPDA Antenna 700-2700 MHZ

Availability: In Stock

Buy Online Now at Powertec.com.au

The Blackhawk wideband LPDA antenna is a small antenna that provides good performance with a lightweight, low-cost design. There’s plenty of situations where a big, solid metal antenna is necessary, but also plenty where something quick and small can be just as useful. This antenna is great for areas where the indoor signal is weak, and only a simple antenna on the roof is enough to give a fantastic improvement.

FEATURES
10 dBi gain across lower bands 698-960 MHz
11 dBi gain across upper bands 1710-2600 MHz
Lightweight, compact design
Mounting clamp included
30 cm tail with pre-terminated N Female connector
Supplied with 10 m of PT240 cable N Male – SMA Male connectors
Great cost-effective antenna.

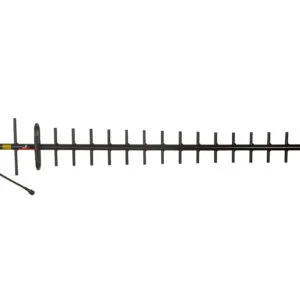

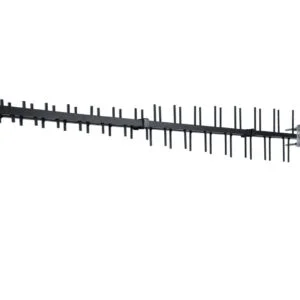

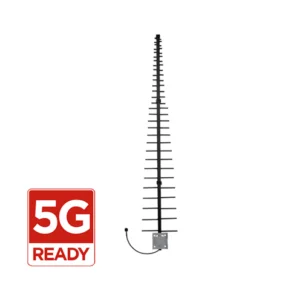

The antenna is simple and effective, it might not last as long as a fully welded yagi, or our Blackhawk LPDA, but it’s a great antenna for temporary installations or those travelling who need something compact.

Mounting is made simple with a mast down-tilt bracket and U-Bolts. This enables you to mount the antenna on a flat surface or a pole.

Category:

ELECTRICAL SPECIFICATIONS

Frequency Range700-960 MHz / 1710-2600 MHz
Input Impedance50 Ω
Gain10 / 11 dB
VSWR≤ 2.0 / ≤ 1
PolarisationVertical
Horizontal Beamwidth70°
Vertical Beamwidth50°
Maximum Input Power50 W
Lightning ProtectionDC Ground

MECHANICAL SPECIFICATIONS

Dimensions450 x 210 x 65 mm
Weight1.1kg
Operating Temperature-40°C – +65°
Connector1 x N-Female
MaterialAluminium and ABS
Dimensions442 x 205 x 37 mm
Antenna ColourWhite
Mounting Pole38 – 52 mm
Rated Wind Velocity210km/h
